Benjamin Sheridan Rebuild Repair Kit,
Some Pre-1995 Multi-Pumps with Soldered Valve
Valve Tool only available here
kit fits these multi-pump guns made before 1995 (they have a soldered
valve): Benjamin 397, 392, 340, 342 & 347 guns as well as Sheridan C9
(Silver Streak) & CB9 (Blue Streak). To determine if this kit is for
Remove the screw in
front of trigger guard to remove rear part of the stock.
Remove the pins or
screws that hold the retention cap at the rear of the receiver.
Remove the guide pin,
spring & hammer to reveal the compression tube.
If the compression tube
appears to be brass & is one piece with a pin protruding from it,
you'll need the other kit (CR/RepairKitC9) instead of this one.

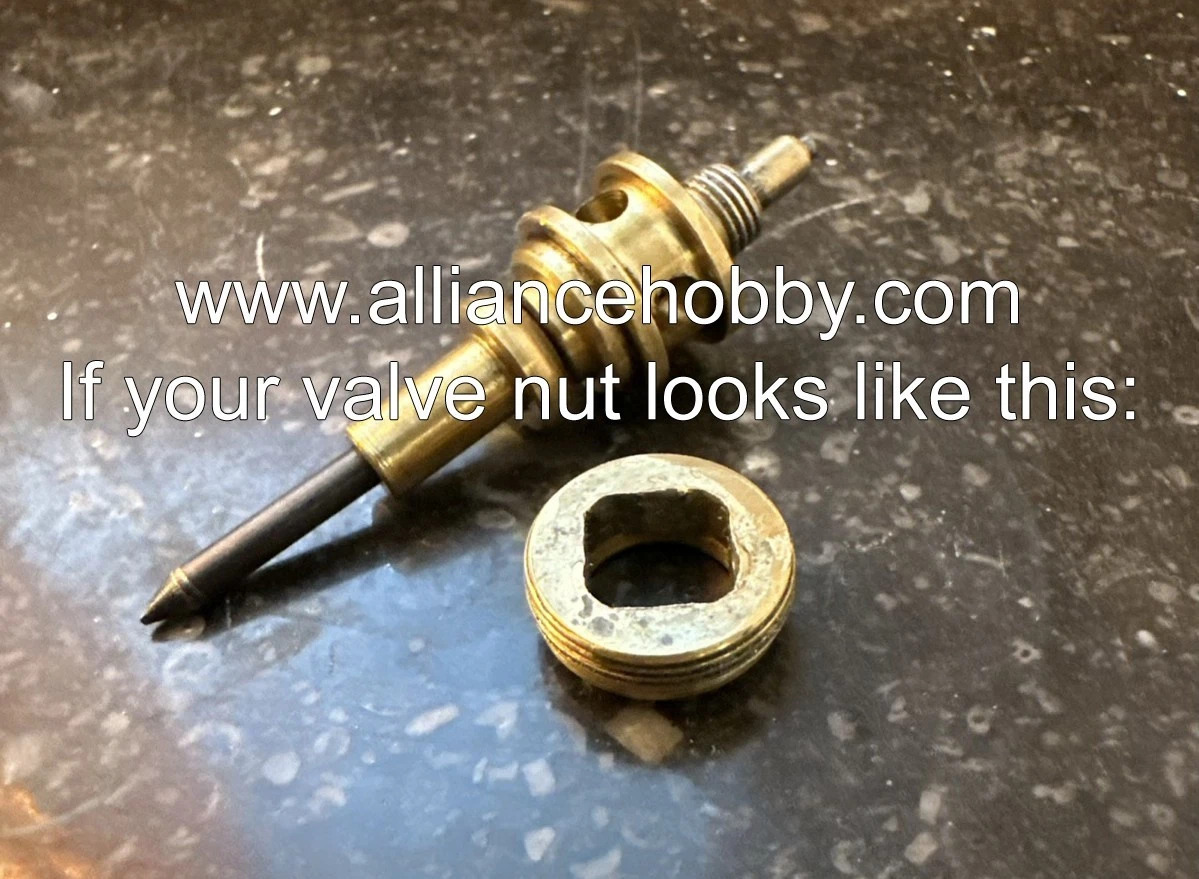

If your gun has a
rounded square hole with a valve stem sticking up through it, then the
kit shown on this page will fit your gun. The included valve tool
(pictured on this page) is needed to remove the parts from the
soldered valve body (directions included with kit).
kit includes parts that are still available from Crosman and may require
slight modification. If your gun is very old and has been treated with
any petroleum distillates and/or solvents that damage rubber seals, the
removal of the old parts can be challenging. The obsolete gasket that
seals the valve guide to the compression tube can normally be reused. If
you used petroleum products, it may be irreparably damaged and will need
to be replaced by a thin o-ring.
